Wall Mounted boxes (28000)

$0.00

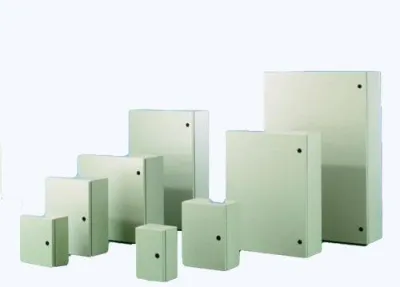

Steel Enclosures, available with solid or pvc door. Mounting plates sold separately.

  • Body 1.5mm (16ga) mild steel

  • Door: Left hinged, 1.5mm (16ga) mild steel

  • Four 8mm holes for wall mounting

  • 120º door opening

  • Quarter turn latches with screwdriver insert

  • Removable hinges

  • Continuous polyurethane gasket

  • RAL 7035 epoxy powder coated finish

  • M6 ground studs.

  • NEMA TYPE 4. UL/CUL. IP66.

https://storage.googleapis.com/msgsndr/h068DadvqIrUVvD2cggA/media/67b156502de3ab60fa9af718.pdf

Catalog Number

H x W x D (mm)

H x W x D (cm)

H x W x D (inches)

Doors

28020

306x206x150

30x20x15

12x8x6

1

28030

306x206x200

30x20x20

12x8x8

1

28035

306x256x150

30x25x15

12x10x6

1

28036

306x256x200

30x25x20

12x10x8

1

28040

306x306x150

30x30x15

12x12x6

1

28041

306x306x200

30x30x20

12x12x8

1

28045

356x256x150

35x25x15

14x10x6

1

28050

356x256x200

35x25x20

14x10x8

1

28060

406x306x150

40x30x15

16x12x6

1

28070

406x306x200

40x30x20

16x12x8

1

28100

406x406x150

40x40x15

16x16x6

1

28110

406x406x200

40x40x20

16x16x8

1

28111

506x306x150

50x30x15

20x12x6

1

28112

506x306x200

50x30x20

20x12x8

1

28113

506x356x150

50x35x15

20x14x6

1

28114

506x356x200

50x35x20

20x14x8

1

28115

506x406x150

50x40x15

20x16x6

1

28116

506x406x200

50x40x20

20x16x8

1

28117

506x406x250

50x40x25

20x16x10

1

28134

506x506x20

50x50x20

20x20x8

1

28119

606x406x150

60x40x15

24x16x6

1

28120

606x406x200

60x40x20

24x16x8

1

28130

606x406x250

60x40x25

24x16x10

1

28135

506x506x250

50x50x25

20x20x10

1

28140

406x606x200

40x60x20

16x24x8

1

28150

406x606x250

40x60x25

16x24x10

1

28171

606x506x150

60x50x15

24x20x6

1

28172

606x506x200

60x50x20

24x20x8

1

28173

606x506x250

60x50x25

24x20x10

1

28174

606x606x200

60x60x20

24x24x8

1

28175

706x506x200

70x50x20

28x20x8

1

28176

706x506x250

70x50x25

28x20x10

1

28177

606x606x250

60x60x25

24x24x10

1

28178

806x506x200

80x50x20

32x20x8

1

28181

806x506x250

80x50x25

32x20x10

1

28179

806x606x200

80x60x20

32x24x8

1

28180

806x606x250

80x60x25

32x24x10

1

28190

806x606x300

80x60x30

32x24x12

1

28192

906x606x200

90x60x20

36x24x8

1

28193

906x606x250

90x60x25

36x24x10

1

28194

906x606x300

90x60x30

36x24x12

1

28195

1006x606x250

100x60x25

40x24x10

1

28196

1006x606x300

100x60x30

40x24x12

1

28199

806x806x200

80x80x20

32x32x8

1

28200

806x806x300

80x80x30

32x32x12

1

28210

806x806x400

80x80x40

32x32x16

1

28218

1006x806x200

100x80x20

40x32x8

1

28219

1006x806x250

100x80x25

40x32x10

1

28220

1006x806x300

100x80x30

40x32x12

1

28230

1006x806x400

100x80x40

40x32x16

1

28240

1206x606x300

120x60x30

48x24x12

1

28250

1206x806x250

120x80x25

48x32x10

1

28260

1206x806x300

120x80x30

48x32x12

1

28270

1206x806x400

120x80x40

48x32x16

1

28278

120x100x30

120x100x30

48x40x12

1

28280

60x80x20

60x80x20

24x32x8

2

28281

60x100x20

60x100x20

24x40x8

2

28282

80x100x20

80x100x20

32x40x8

2

28283

60x80x30

60x80x30

24x32x12

2

28284

60x100x30

60x100x30

24x40x12

2

28285

60x120x30

60x120x30

24x48x12

2

28286

60x140x30

60x140x30

24x55x12

2

28287

80x100x30

80x100x30

32x40x12

2

28288

80x120x30

80x120x30

32x48x12

2

28289

80x140x30

80x140x30

32x55x12

2

28290

100x100x30

100x100x30

40x40x12

2

28291

100x120x30

100x120x30

40x48x12

2

28292

120x120x30

120x120x30

48x48x12

2

28293

120x100x30

120x100x30

48x40x12

2

Show More
